RSC-IMX61

Here you can find instruction to setup development environment for Android source code for RSC-IMX61 and the way to install it on eMMC or SD card.
With this guideline, user will be able to setup the system easily and test all the functions with the system.

Please following command below to install Oracle JDK6.0 on Ubuntu 12.04 or above.

#sudo apt-get install python-software-properties
#sudo add-apt-repository ppa:webupd8team/java
#sudo apt-get update
#sudo apt-get install oracle-java6-installer
#sudo update-alternatives --config java

Please refer to hyperlink below to setup development environment
Initializing a Build Environment

Please connect Avale FAE/Sales to get source code.

Please following instruction below to compile Android source code

#cd android4

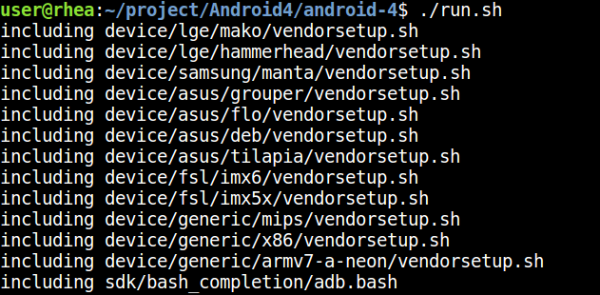

#./run.sh

Select 24 to compile Android4.4 image

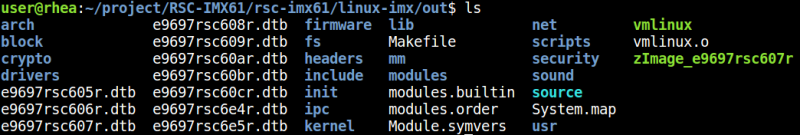

You can find Android image files in path linux-imx/out/target/product/aib

Flash image(RSC-IMX61)

Android6.0
Ubuntu12.04
Yocto2.1

Ubuntu12.04
Yocto2.1

Datasheet
User's Manual
Mechanical Drawing
3D Drawing (step file)
